Overview
Radix Streams is a new addition to the Radix Device Management platform. It is a content management system (CMS) that allows you to create a content carousel or slideshow with display rules. Once you have created a Stream, it is possible to add or remove slides, as well as to rearrange the order of the slides. The content can consist of:
- - Images,
- - Videos,
- - URLs, or
- - Creatives--A custom-made style sheet including text, images, clickable buttons, and more.
(For instructions on making a custom-made creative content item, see Creating Content for a Stream.)
Besides controlling the order of the images, you can also control how long each element will be displayed.
Creating a Stream
To create a Stream:
1. Click on the Streams icon in the sidebar menu to open the Streams Console.
2. In the Streams console, click on Add Stream to create a new stream.
A blank Playlist opens.
Assigning a Name to the Playlist

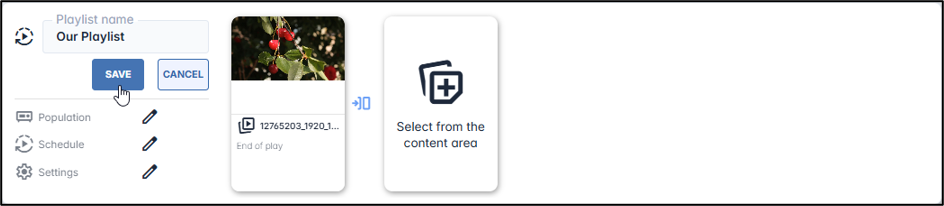

3. Assign a name to the Playlist. We will call it “Our Playlist”.
Adding Content to the Playlist

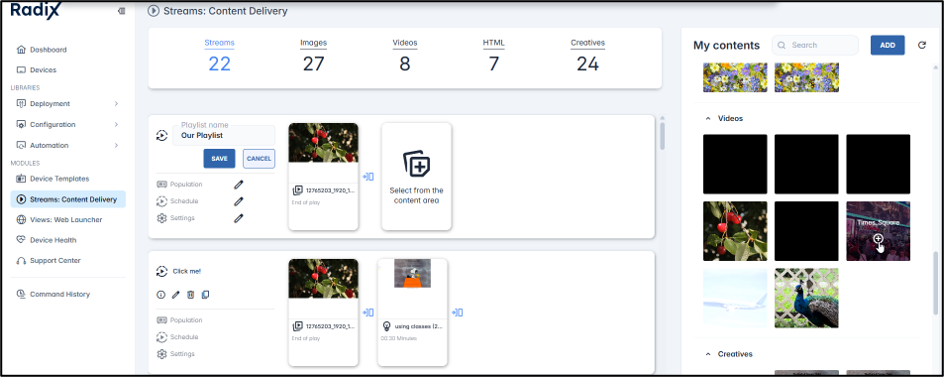

4. Click on the “+” on the content items in the right-hand pane to add them to the playlist. You can select a combination of URLs, Images, Videos, and original content.
Populating the Stream

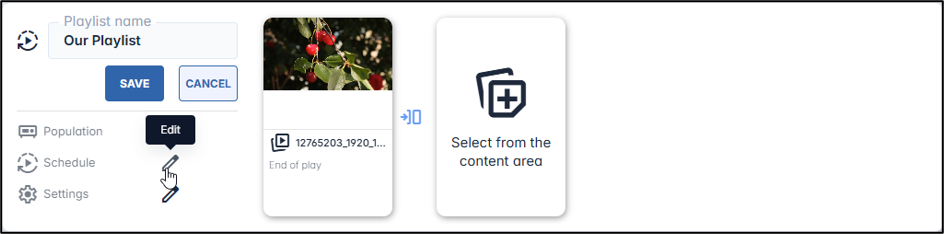

5. Click on the Edit icon next to Population to open the Population pane.
6. In the Population pane, select which groups of devices will display the Stream. In the example below, we selected group “aep”.
7. You may also apply a filter to display the Stream on only select devices in the group. Click on Add in the Filter pane to see the filter options. In our example below, we can apply a filter to only display the Stream on certain Lenovo devices.
8. Click Save to save your selection.
Setting a Schedule for Displaying the Stream
9. Click on the Edit icon next to Schedule to open the Schedule Configuration pane.
10. In the Schedule Configuration pane, specify whether you want to display the Stream immediately or only on certain weekdays.
11. In the example below, we chose to display the Stream on a scheduled time, on Sunday, July 20, 2025, between 12:42 and 13:42.
12. Click Save to save your selection.
Adjusting Display Settings
13. If you wish to specify the display settings on the remote devices, click on the Edit icon next to Settings.
14. In the Settings pane, specify the display settings, and click Save to save your selection.
The display settings options are as follows:
- - Orientation: Select whether the Stream should be displayed in Portrait or Landscape orientation, or to automatically adjust the orientation according to the positioning of the remote device.
- - Top Status Bar: Select whether to display or hide the top status bar.
- - Bottom Status Bar: Select whether to display or hide the bottom navigation bar buttons.

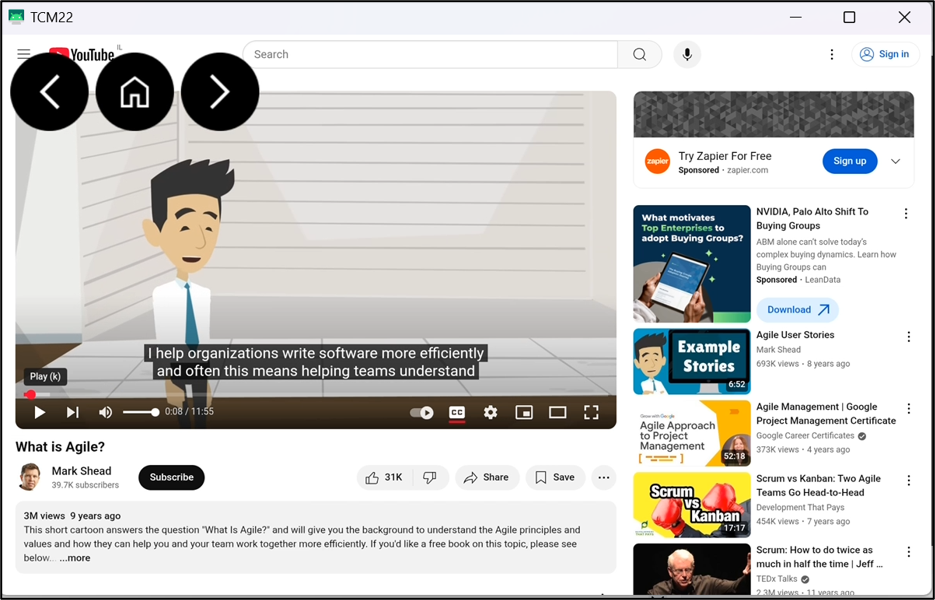

- - Floating navigation buttons visibility: Select whether to display additional floating navigation buttons for Home, Back, and Stop.
- - Service Menu options: When a remote device is displaying a Stream, you can interrupt the display of the stream by tapping on the device 5 times in quick succession. This displays the Service Menu, which consists of a Wi-Fi settings icon, a Bluetooth selector icon, and a Kiosk settings icon. With the Service Menu options, you can decide whether to display the Wi-Fi settings icon and Bluetooth selector icon, or to hide them.
- - Power & Input Settings: If you select the Keep on while playing button, the device display stays on as long as the Stream is running. If left unselected, the remote device goes into screen saver mode after a specified time.
- - Offline configuration: This option can allow the device to continue to display the Stream even if the device goes offline.
15. Click Save on the Playlist.
A notification appears at the bottom of the screen, indicating that the Stream has been saved.
The playlist will start displaying on the selected devices, according to the predetermined schedule.
