The Radix Mobile Device Management Platform enables you to automate device behavior using the Schedule & Trigger command. By defining time-based or location-based triggers, you can streamline operations, reduce manual intervention, and optimize resource usage across your device fleet.
In this guide, we will demonstrate how to create a daily shutdown trigger to conserve electricity and help extend device lifespan.
Creating the Trigger

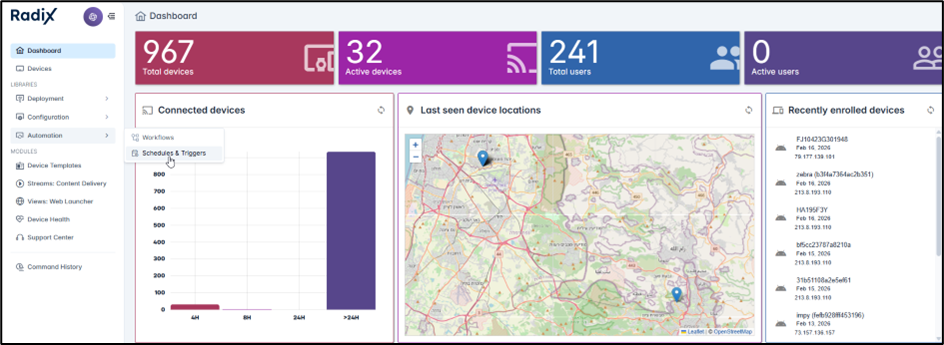

1. In the sidebar menu of the Radix Device Management Platform, click on Automation>Schedules & Triggers.

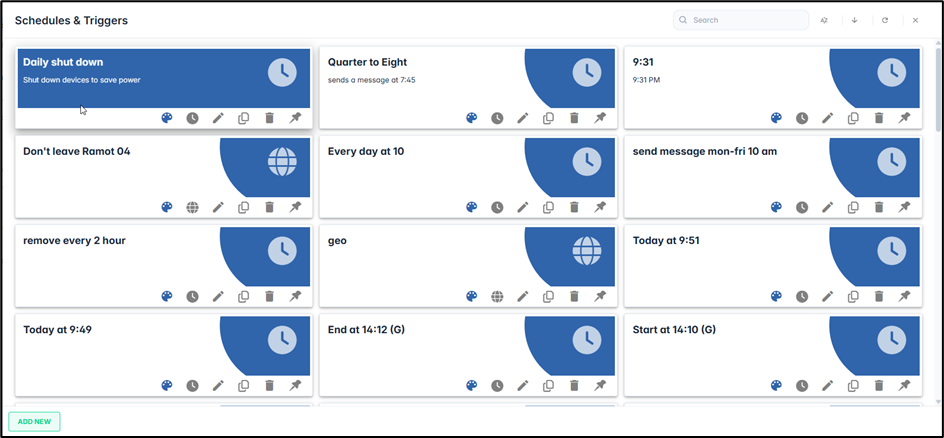

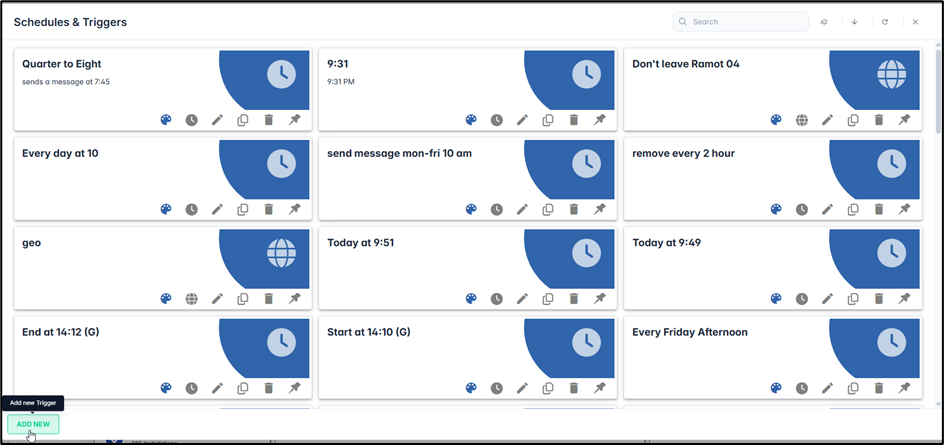

2. In the Schedule and Triggers window that opens, click on Add New, to create a new Trigger.

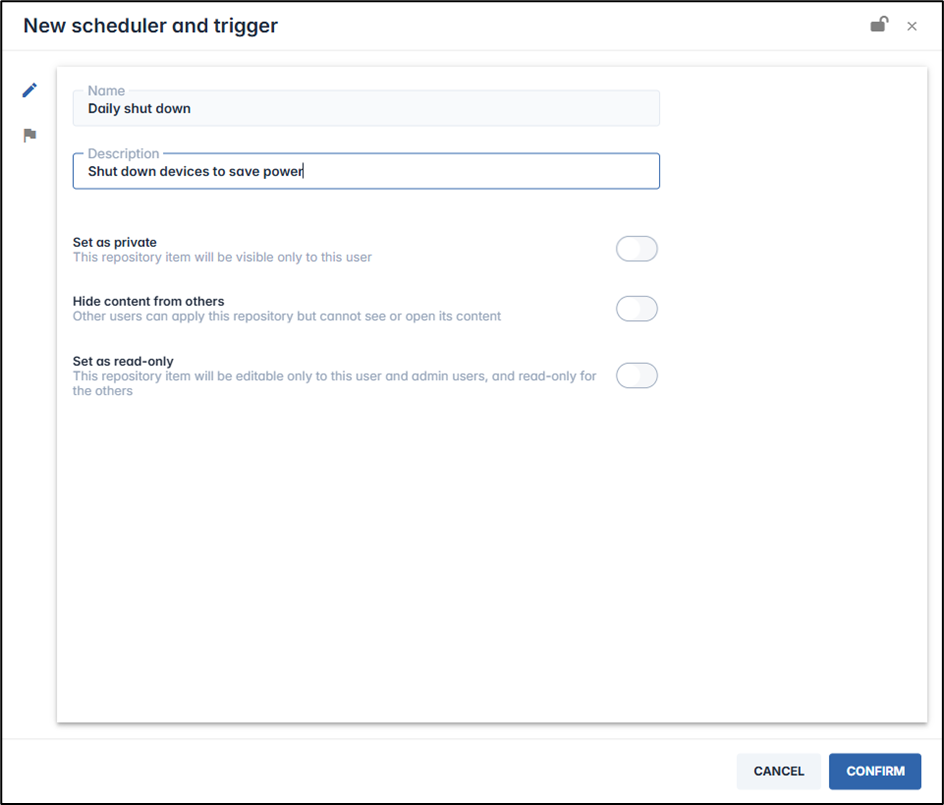

3. In the New Scheduler & Trigger window, assign a name and description of the Trigger.

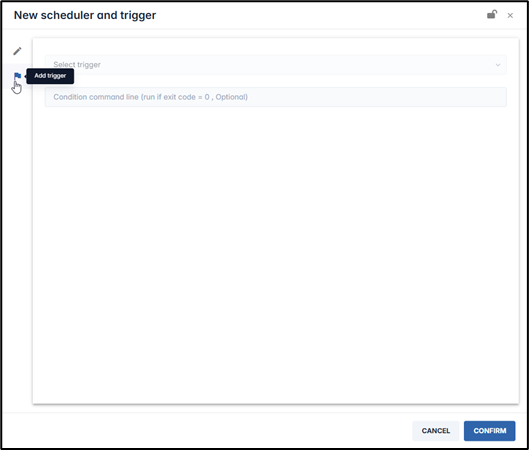

4. Click on Add Trigger in the sidebar menu:

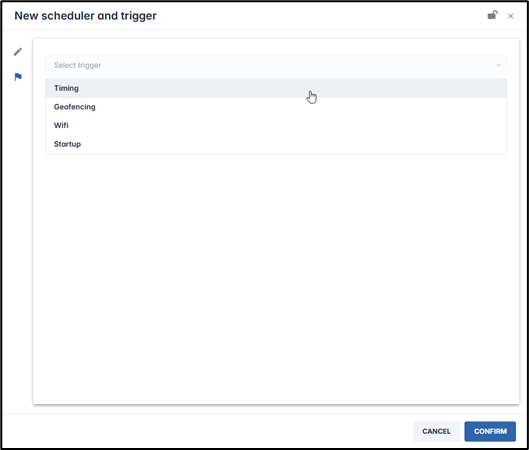

5. Click on the Select Trigger textbox and choose the relevant trigger type. You can define the action based on time (Timing), geographic location (Geofencing), Wi-Fi connection, or device startup.
For this example, select Timing.

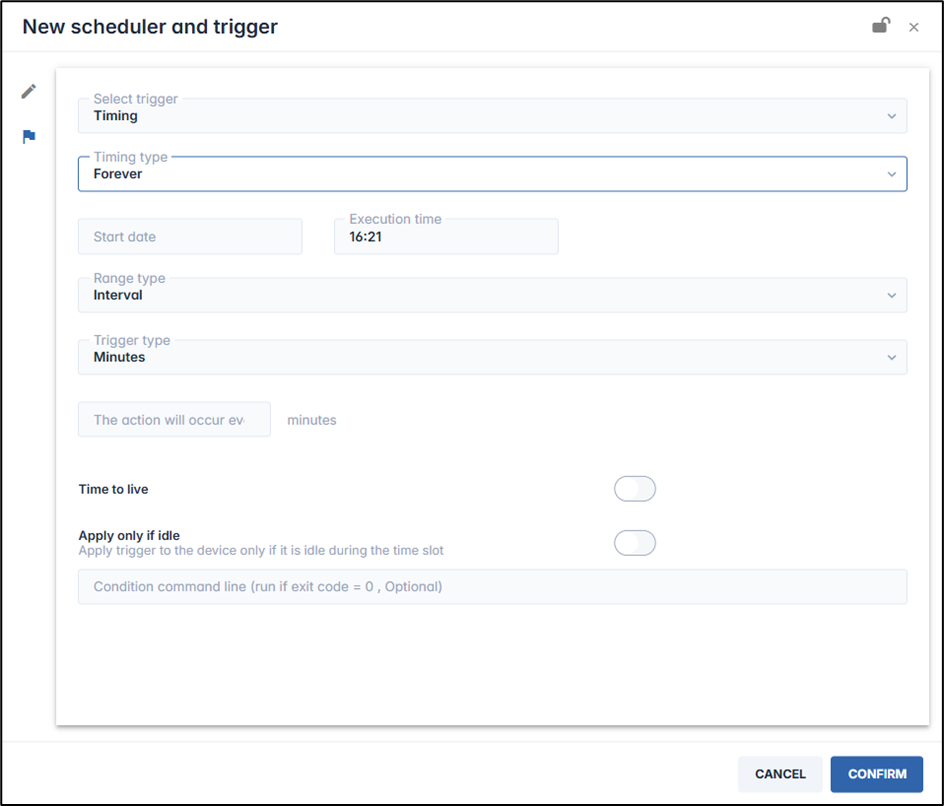

6. We want this trigger to turn off all devices every day, with no end date. Therefore, in Timing Type, select Forever.

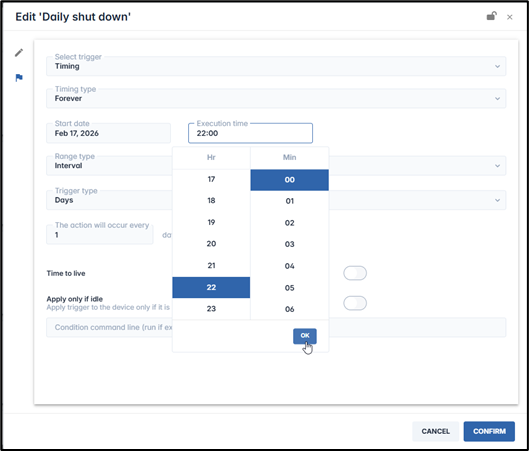

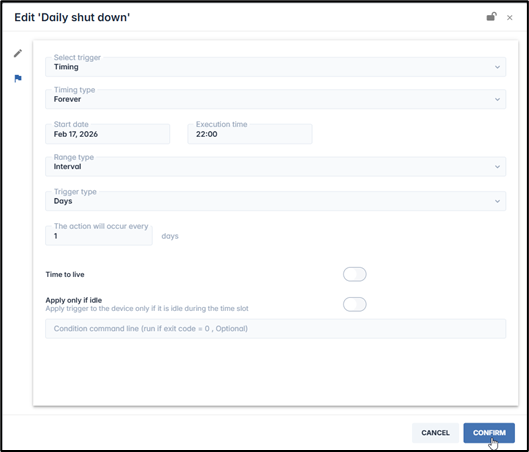

7. Fill out the rest of the fields with the following parameters:
- Start date: Use the date when you want the trigger to start.
- Execution time: Supply the time from when you want the trigger to execute. For example, we can choose to shut down devices every day at 10:00 PM.
- Range type: We have the options of selecting a defined interval, specific days of the week, or specific days of the month. We will select “Interval”, since we want this command to execute every day.
- Note: Select “Days of week” if you want the trigger to run only on specific weekdays.
- Trigger type: We can select by minutes, hours, days, or weeks. We will select “days”.
- This action will occur every: We will select “1”, since we want the devices to shut down every day.
8. Click Confirm.
This will save the Trigger option in the repository of triggers.
Applying the Trigger
Now we will assign the trigger to a command and put it into action.
We will illustrate using the trigger:
- On a group of devices
- On selected devices
- On an individual device
Using a Trigger on a Group of Devices

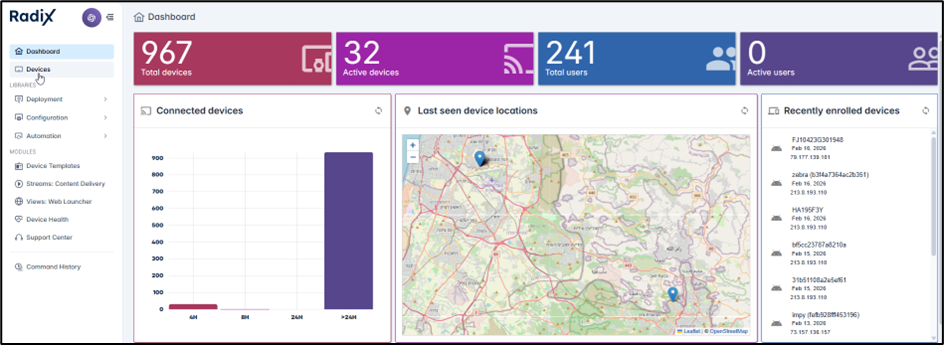

1. Click on Devices in the sidebar menu to open the Devices Table.

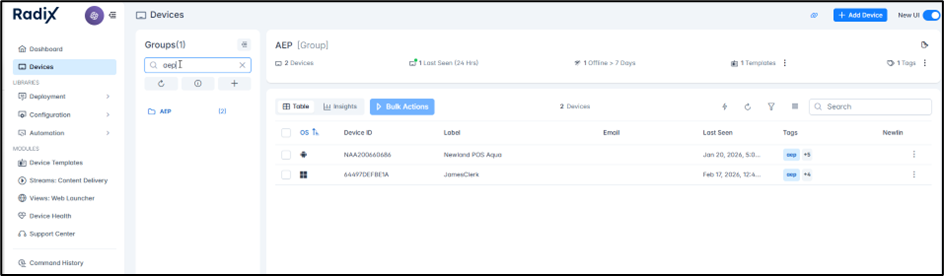

2. In the Groups pane, we will select the group “aep” on which to perform our trigger command.

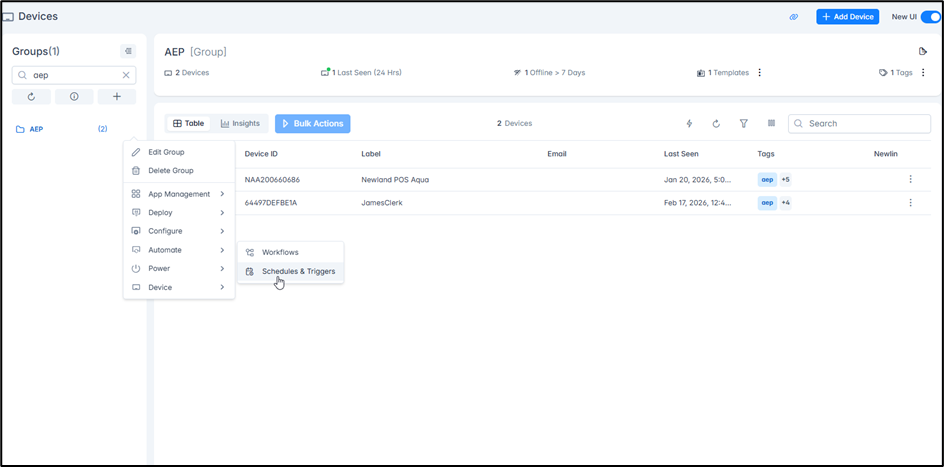

3. Click on the group’s three-dot menu and go to Automate>Schedules & Triggers.

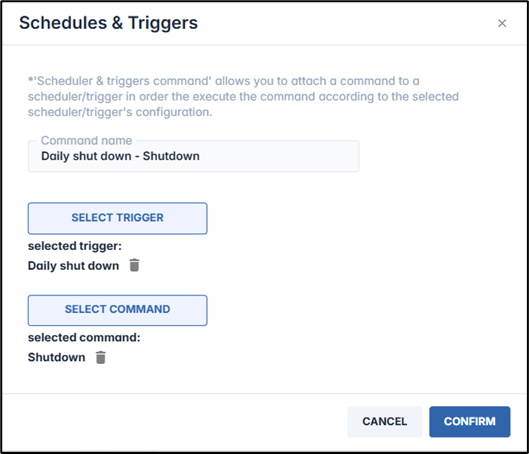

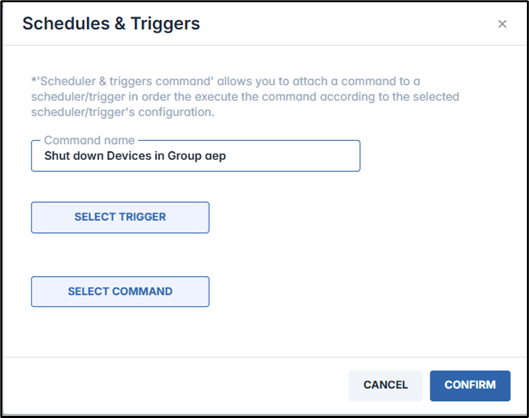

4. In the Schedule & Trigger window, supply a descriptive name for the command:
5. Click Select Trigger to open the repository of trigger options.

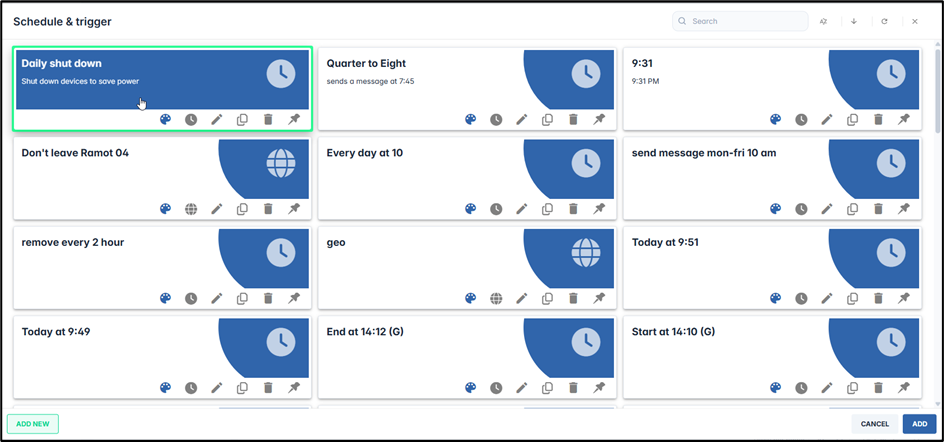

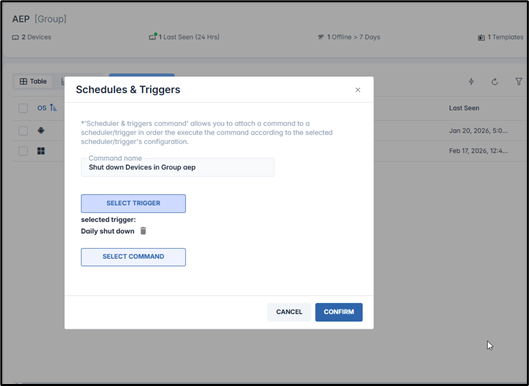

6. Select our trigger “Daily shut down” and click Add. The trigger will appear in our Schedule and Trigger option.

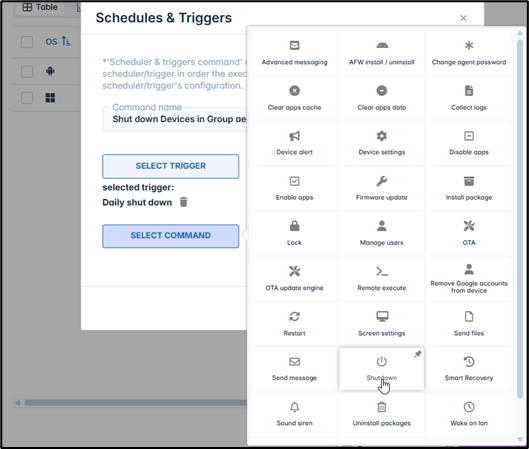

7. Click Select Command. In the menu that opens, choose the Shutdown command.

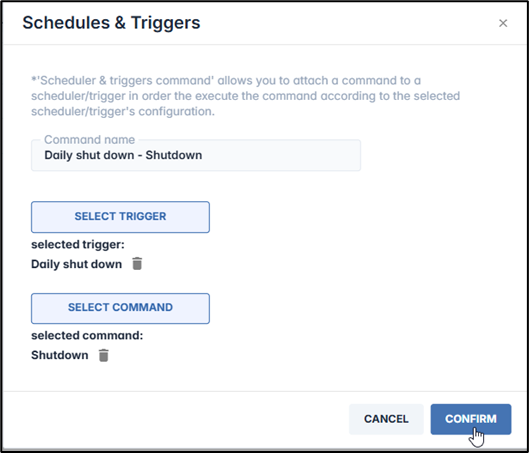

8. Click Confirm. The Schedule & Trigger option will be sent to the group “aep” and will turn off the devices in the group every day at 10 PM.

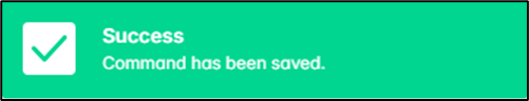

We will receive a notification in the lower right corner informing us that the Schedule & Trigger command has been sent to the group:
Using a Trigger on Selected Devices
We can also select specific devices and use the Bulk Actions button to use trigger on those devices.
1. Click on Devices in the sidebar menu to open the Devices Table.

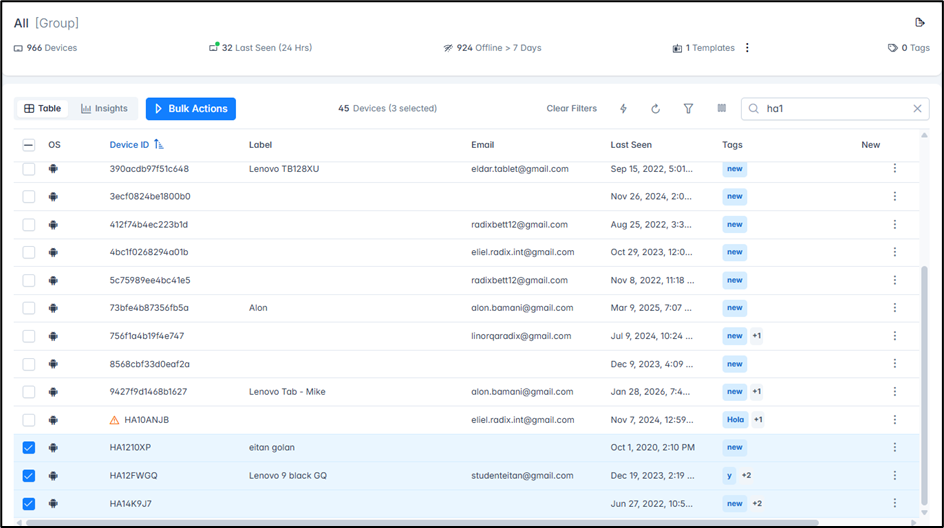

2. In the Devices Table, check the checkboxes of the devices that you want to shut off at 10 PM every day.

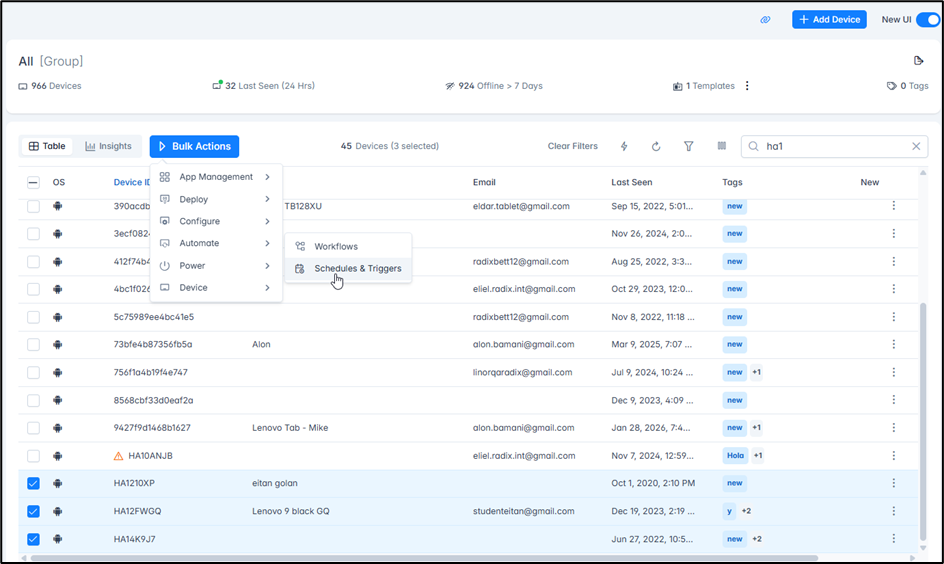

3. Click on Bulk Actions>Automate>Schedules & Triggers.
4. In the Schedule & Trigger window, supply a descriptive name for the command:

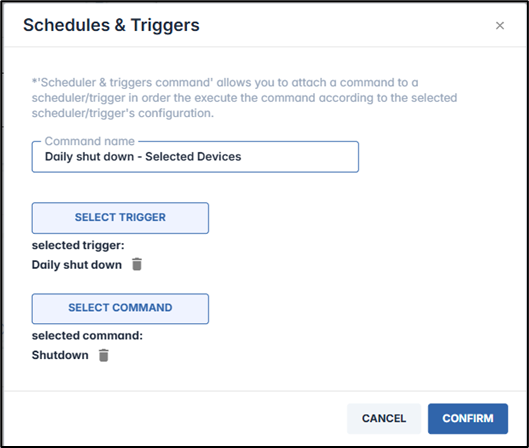

5. Proceed as above in selecting the “Daily shut down” trigger, selecting the “Shutdown” command, and confirming the Schedule & Trigger command.
The Schedule & Trigger option will be sent to the selected devices and will turn off the devices every day at 10 PM.
Using a Trigger on a Specific Device
We can also select a specific device and use the Schedule & Trigger command on it.
1. Click on Devices in the sidebar menu to open the Devices Table.

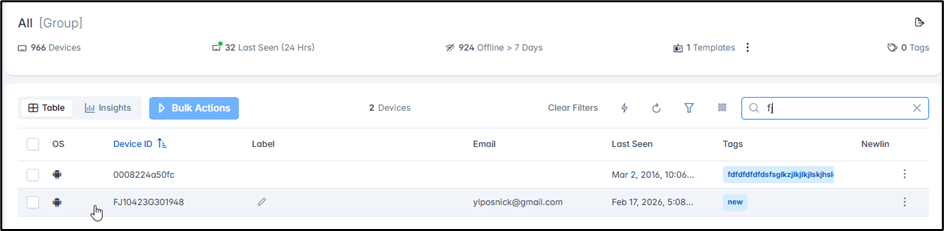

2. In the Devices Table, click on the row of the device that you want to shut off at 10 PM every day.
This opens the Device Dashboard.

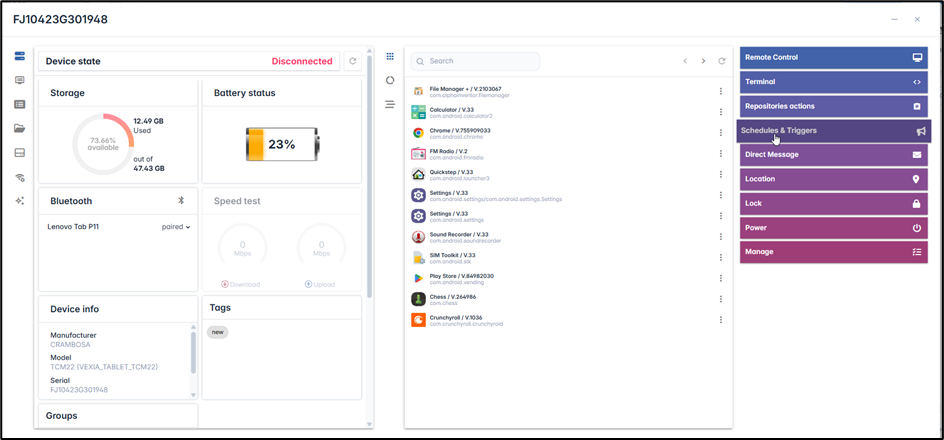

3. In the Device Dashboard, click on Schedule & Triggers.
4. In the Schedule & Triggers window, supply a descriptive name for the command:
5. Proceed as above in selecting the “Daily shut down” trigger, selecting the “Shutdown” command, and confirming the Schedule & Trigger command.
The Schedule & Trigger option will be sent to the selected device and will turn off the device every day at 10 PM.
Stopping a Schedule & Trigger command:
If we wish to stop the Schedule & Trigger command at any point, we can do this via the Command History console.

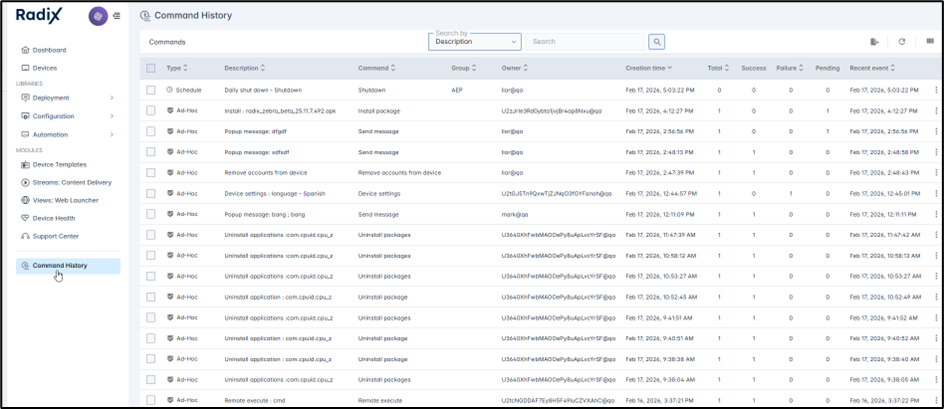

1. Click on Commands History in the sidebar menu, to open the Commands History console.
2. Look for the command that we have sent to the group “aep”. We see it at the top of the list: “Daily shut down—Shutdown”.

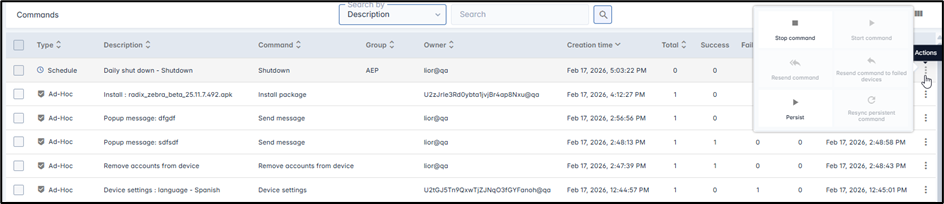

3. Click on the three-dot menu for that command to open the Actions menu.

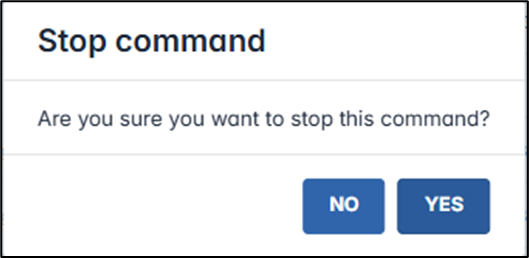

4. Select Stop command. You will be prompted if you want to stop the command.

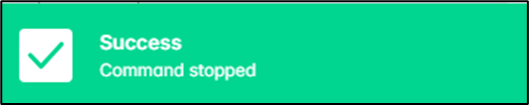

5. Click Yes. You will see a notification that the command has been stopped.
This will stop the Schedule and Trigger option that we sent to the group "aep".
